Configuring Network Adapter TCP/IP Settings using Powershell 4.0 Cmdlets .

PowerShell 4.0 is a requirement for these cmdlets to work.The GUI( Graphic User Interface) is commonly used to configure network adapter settings or the good old netsh command. But if I had to work with Hyper-v core or Windows Server 2012 R2 core, there’s a number of PowerShell cmdlets that could be used in place of the above mentioned tools.

The traditional ipconfig displays network ip configuration. But the following cmdlet could be used to achieve the same thing more efficiently: Get-NetIPConfiguration or it’s alias gip. Any of the parameters could be used to further filter the results as indicated in the following screenshots:

gip00

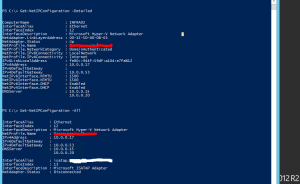

The alias generates the same results:

gip01

gip02

The tcpip settings are currently dhcp based. I’ll start by displaying the netadapter and ip address before removing the ip settings, then reconfiguring them with static addresses. :

gip03

Confirm that IP Address settings have been removed (The displayed IP is the Automatic Private IP Addressing):

gip04

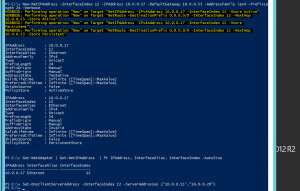

Set IP Address and DNS settings manually:

gip05

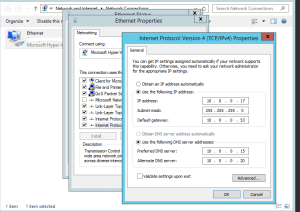

Display the static settings using the GUI tool:

gip06

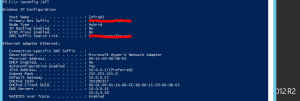

Display the settings using ipconfig :

gip07

On a side note, if I had multiple network adapters on the host machine, I could disable DNS registration on all the NICs except the primary:

PS C:\> Set-DnsClient -InterfaceIndex 12 -RegisterThisConnectionsAddress $false

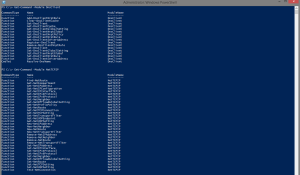

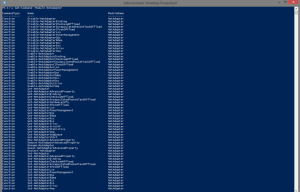

The Set-DnsClient cmdlet and it’s parameters are much more efficient and shorter in my opinion than using the Get-WmiObject -Class win32_networkadapterconfiguration class with it’s methods and properties to achieve the same result. The screenshots below show the PowerShell modules that contain the cmdlets used in this post:

gip08

gip09
