PowerShell helps me better understand the internal workings of complex Cloud based operations that in many instances have a lot of moving parts. Better understanding helps determine ways to automate these operations that could otherwise take much time and repetition to accomplish.I developed the following Deploy-ManagedEncryptedLinuxVM PowerShell function to automate the provisioning, installation of LAMP Stack software components and encryption of one or more Managed Disk Azure VM(s) running CentOS 7.3. using Azure Disk Encryption. The function is also available at my GitHub Repository .
The Disk encryption process protects disk data by converting it into unreadable code(scrambling) that cannot be deciphered easily by unauthorized persons. Azure Disk Encryption leverages the Linux DM-Crypt feature to provide encryption for the Managed Disk VM OSDisk.
Prerequisites
a) An Azure Key Vault needs to be created and enabled for Template Deployment and DiskEncryption. The Key Vault is a hardened container for the keys and secrets generated during the encryption process. The Key Vault must be in the same region as the VMs to be encrypted.
b) Additionally, an Azure Active Directory (AAD) application is required to write secrets to the Key Vault. After the Application is created, authorize the application to use the key or secret in the Key Vault by using the Set-AzureRmKeyVaultAccessPolicy cmdlet. Microsoft provides an Azure Disk Encryption prerequisite PowerShell script to help create an Azure AD application, create a key vault, or set up an existing key vault for encryption.
Overview
The Deploy-ManagedEncryptedLinuxVM Function takes the Location, SubscriptionName and ResourceGroupName variables as parameters. The first section of the function uses the Azure Automation RunAs account to successfully authenticate against the Azure Subscription. The next section declares and initializes variables related to the Key Vault, Application ID and Template Uris for deploying the Virtual Machine templates.
The Check Key Vault Access Policy region of the function confirms that the Azure Application has been granted appropriate permissions to the existing key vault. We then deploy the ARM templates (available at my GitHub repository) to provision the Virtual machines. The template parameters file is available here. The ARM template also runs a bash script that installs the LAMP (Linux, Apache, MariaDB and Python) Stack to the CentOS Virtual Machine. The final section of the function initiates disk encryption and restarts the VM to complete the process.
The final section of the function sends an email notification to the subscription owner(s) with details of the VM(s) encryption status for review.
<#
.SYNOPSIS
The Deploy-ManagedEncryptedLinuxVM function automates the provisioning, installation of LAMP Stack software components and encryption of one or more Managed Disk Azure VM(s) running CentOS 7.3.
.DESCRIPTION
The Deploy-ManagedEncryptedLinuxVM function automates the provisioning, installation of LAMP Stack software components and encryption of one or more Managed Disk Azure VM(s) running CentOS 7.3.
The function assumes that the Azure Key Vault infrastructure is already in place. An ARM template is used to provison the VM(s) and install the LAMP Stack.
PowerShell is used to initiate Azure encryption and restart the VM to complete the encryption process.The function could be deployed as a Runbook and triggered with a set schedule or a webhook.
.PARAMETER SubscriptionName
Source Subscription of the VM to be deployed.
.PARAMETER Location
Location to provision the VM .
.PARAMETER ResourceGroupName
ResourceGroupName to deploy and encrypt the VM.
.EXAMPLE
Deploy-ManagedEncryptedLinuxVM
.FUNCTIONALITY
PowerShell Language
/#>
Param(
$Location = "southcentralus",
$SubscriptionName = "Trial",
$ResourceGroupName = "RGXavier"
)
$connectionName = "AzureRunAsConnection"
#region Azure Logon
try {
# Get the connection "AzureRunAsConnection "
$servicePrincipalConnection = Get-AutomationConnection -Name $connectionName
"Logging in to Azure..."
Add-AzureRmAccount `
-ServicePrincipal `
-TenantId $servicePrincipalConnection.TenantId `
-ApplicationId $servicePrincipalConnection.ApplicationId `
-CertificateThumbprint $servicePrincipalConnection.CertificateThumbprint
}
catch {
if (!$servicePrincipalConnection) {
$ErrorMessage = "Connection $connectionName not found."
throw $ErrorMessage
}
else {
Write-Error -Message $_.Exception
throw $_.Exception
}
}
Select-AzureRmSubscription -SubscriptionName $SubscriptionName
#endregion
#region keyvault and encryption variables
$StorageAccountName = "store0518"
$VaultName = "labvault"
$KeyName = "EncryptKey"
$SecretName = "AadClientSecret"
$AadClientID = "74b9c8a5-00ba-49c1-adb8-1db4757ea3df"
$AadClientSecret = (Get-AzureKeyVaultSecret -VaultName $VaultName -Name $SecretName).SecretValueText
$TemplateUriLinux = "https://store0518.blob.core.windows.net/scripts/ManagedDiskLinuxVM.json?sv=2016-05-31&ss=bfqt&srt=sco&sp=rwdlacup&se=2018-08-02T23:47:00Z&st=2017-08-02T15:47:00Z&spr=https&sig=OoDzCOi6FoLVt4ZkTJu%2BEsadOM2KhNDfWSppsvE864w%3D"
$TemplateParameterUriLinux = "https://store0518.blob.core.windows.net/scripts/VMSecretParameters.json?sv=2016-05-31&ss=bfqt&srt=sco&sp=rwdlacup&se=2018-08-02T23:47:00Z&st=2017-08-02T15:47:00Z&spr=https&sig=OoDzCOi6FoLVt4ZkTJu%2BEsadOM2KhNDfWSppsvE864w%3D"
#endregion
#region Remove existing resources and vhds if any
try {
Find-AzureRmResource -ResourceGroupNameContains $ResourceGroupName | ? {$_.ResourceName -ne $VaultName -and $_.ResourceName -ne $StorageAccountName} | Remove-AzureRmResource -Force
}
catch {
$ErrorMessage = $_
throw $ErrorMessage
}
#endregion
#region Get Key Vault and verify access policy
try {
$keyVault = Get-AzureRmKeyVault -VaultName $VaultName -ResourceGroupName $ResourceGroupName -ErrorAction Stop
}
catch {
if (!$keyVault) {
$ErrorMessage = "Vault $vaultName not found."
throw $ErrorMessage
}
}
#Check Vault Access Policy
$servicePrincipalConnectionObjId = (Get-AzureRmADServicePrincipal -ServicePrincipalName $servicePrincipalConnection.ApplicationId).id
$policyaccessid = ((Get-AzureRmKeyVault -VaultName $VaultName -ResourceGroupName $ResourceGroupName).AccessPolicies | ? {$_.ObjectId -eq $servicePrincipalConnectionObjId}).ObjectId
if ($servicePrincipalConnectionObjId -notmatch $policyaccessid) {
Set-AzureRmKeyVaultAccessPolicy -VaultName $VaultName -ResourceGroupName $ResourceGroupName -ServicePrincipalName $servicePrincipalConnection.ApplicationId `
-PermissionsToKeys all -PermissionsToSecrets all -PermissionsToCertificates all
}
#Get Kek
$kek = Get-AzureKeyVaultKey -VaultName $VaultName -Name $KeyName
$KeyEncryptionKeyUrl = $kek.Key.Kid
#endregion
#region
#Deploy VM ARM Template
Write-Host -Object ("Started $(Get-Date)")
New-AzureRmResourceGroupDeployment -Name ManagedEncryptedVM -ResourceGroupName $ResourceGroupName `
-TemplateUri $TemplateUriLinux -TemplateParameterUri $TemplateParameterUriLinux -Verbose
#endregion
#Get Completed VMs
$vms = Get-AzureRmVM -ResourceGroupName $ResourceGroupName | ? {$_.Name -like "*centos73*"}
$encryptedVMs = @()
<#Initiate encryption after VM deployment is complete. To successfully complete encryption
on a managed disk linux VM, use the SkipVmBackup switch parameter. This solution is still valid
as of today 7/28/2017.The enable encryption command typically adds to extensions to the target VM.
A VMBackup extension and the encryption extension.
The VMBackup extension is a recovery safeguard in case encryption fails.
Unfortunately the VMBackup extension is not compatible with managed disks.
This causes the enable encryption command to fail at the point it attempts to make a backup of the managed disk,
prior to performing encryption.
/#>
foreach ($vm in $vms) {
Set-AzureRmVMDiskEncryptionExtension -ResourceGroupName $ResourceGroupName -VMName $vm.name -AadClientID $AadClientID `
-AadClientSecret $AadClientSecret -DiskEncryptionKeyVaultUrl $keyVault.VaultUri -DiskEncryptionKeyVaultId $keyVault.ResourceId `
-KeyEncryptionKeyUrl $KeyEncryptionKeyUrl -KeyEncryptionKeyVaultId $keyVault.ResourceId -Force -VolumeType All -KeyEncryptionAlgorithm RSA-OAEP -SkipVmBackup
$retries = 1
$encryptstatus = "EncryptionInProgress"
while ($encryptstatus -eq "EncryptionInProgress" -or $encryptstatus -eq "Unknown" -and $retries -gt 0) {
$diskstatus = Get-AzureRmVMDiskEncryptionStatus -ResourceGroupName $ResourceGroupName -VMName $vm.name
$encryptstatus = $diskstatus.OsVolumeEncrypted
$retries++
}
if ($encryptstatus -eq "VMRestartPending") {
Restart-AzureRmVM -ResourceGroupName $ResourceGroupName -Name $vm.name
$encryptedVMs += $vm
}
$retries = 1
$encryptstatus = "VMRestartPending"
while ($encryptstatus -eq "VMRestartPending" -or $encryptstatus -eq "EncryptionInProgress" -and $retries -gt 0) {
$diskstatus = Get-AzureRmVMDiskEncryptionStatus -ResourceGroupName $ResourceGroupName -VMName $vm.name
$encryptstatus = $diskstatus.OsVolumeEncrypted
$retries++
}
}
#region create email creds
$Smtpserver = "smtp.sendgrid.net"
$From = "jack.bauer@democonsults.com"
$To = "tony.stark@democonsults.com"
$Port = "587"
$VaultName = "vaultspr"
$SecretName = "SendgridPassword"
$sendgridusername = "azure_a8a3e2815501214fbc3adf4ad15cc425@azure.com"
$sendgridPassword = (Get-AzureKeyVaultSecret -VaultName $VaultName -Name $SecretName).SecretValueText
$emailpassword = ConvertTo-SecureString -String $sendgridPassword -AsPlainText -Force
$emailcred = New-Object System.Management.Automation.PSCredential($sendgridusername, $emailpassword)
#endregion
#region process email
$a = "<style>"
$a = $a + "BODY{background-color:white;}"
$a = $a + "TABLE{border-width: 1px;border-style: solid;border-color: black;border-collapse: collapse;}"
$a = $a + "TH{border-width: 1px;padding: 10px;border-style: solid;border-color: black;}"
$a = $a + "TD{border-width: 1px;padding: 10px;border-style: solid;border-color: black;}"
$a = $a + "</style>"
$body = ""
$body += "<BR>"
$body += "Please review the encryption status of the following" + " " + ($encryptedVMs.count) + " " + "VMs. Thank you."
$body += "<BR>"
$body += "<BR>"
$body += $encryptedVMs | Select-Object -Property Name, @{"Label" = "OSDisk Encryption Status"; e = {((Get-AzureRmVMDiskEncryptionStatus -ResourceGroupName $_.ResourceGroupName -VMName $_.Name).OsVolumeEncrypted)}}, `
@{"Label" = "Data Disk Encryption Status"; e = {((Get-AzureRmVMDiskEncryptionStatus -ResourceGroupName $_.ResourceGroupName -VMName $_.Name).DataVolumesEncrypted)}}, `
@{"Label" = "Encryption Status"; e = {((Get-AzureRmVMDiskEncryptionStatus -ResourceGroupName $_.ResourceGroupName -VMName $_.Name).ProgressMessage)}}| ConvertTo-Html -Head $a
$body = $body |Out-String
$subject = "Provisioned VMs Encryption Status."
if ($encryptedVMs -ne $null) {
Send-MailMessage -Body $body `
-BodyAsHtml `
-SmtpServer $smtpserver `
-From $from `
-Subject $subject `
-To $to `
-Port $port `
-Credential $emailcred `
-UseSsl
}
#endregion
The following screen shot confirms that the OS Disk has been encrypted.

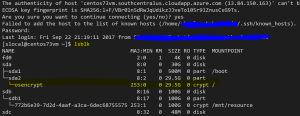

After the VM restart, the OS layout in the VM will look like below to confirm successful encryption :
Email confirmation is sent to the Subscription owner with details of the VM(s) encryption status:
Chinny Chukwudozie, Cloud Solutions.
