Force Disable of Azure Replication from Orphaned On Premise Hyper-V Virtual Machine.

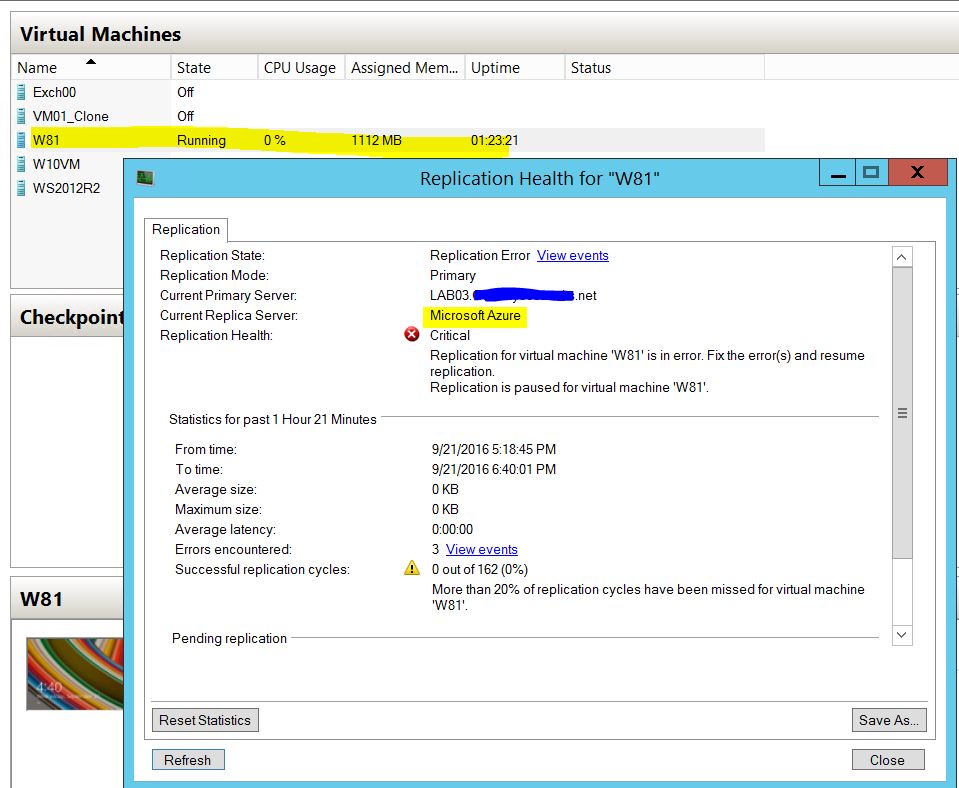

After successfully stopping and removing protection for one of my replica virtual machines in Azure Site Recovery, I observed that the on premise primary virtual machine replication status changed to a failed state. This would be normal behavior considering that replication settings at the Azure target had been removed.

azureerror2

My attempts at disabling replication at the primary VM via the GUI failed. I encountered the following error shown in the screen shot below trying to remove it using the PowerShell cmdlet: Remove-VMReplication -VMName w81:

azureerror1

Please note that I had initially setup Hyper-V (non-SCVMM) to Azure VM replication. The on premise Hyper-V host seemed to believe that the VM replication is still being managed by Azure. After doing some research, I found a four line code on the Microsoft Azure website under the section “Clean up protection settings manually (between Hyper-V sites and Azure)” , that utilizes the WMI Object.

$vmName = "SQLVM1"
$vm = Get-WmiObject -Namespace "root\virtualization\v2" -Query "Select * From Msvm_ComputerSystem Where ElementName = '$vmName'"
$replicationService = Get-WmiObject -Namespace "root\virtualization\v2" -Query "Select * From Msvm_ReplicationService"
$replicationService.RemoveReplicationRelationship($vm.__PATH)

I downloaded and saved the script as a PowerShell function (Remove-OrphanedVMReplication.ps1) after replacing the "SQLVM1" string with the name of my virtual machine. I ran the script in a PowerShell console as Administrator and it successfully disabled replication at the primary on premise VM.

azureerror3

After further research, I will add that Azure Site Recovery has two options for removing a replicated item from Azure:

1) Disable Protection for the Machine (Recommended). As stated in the screen shot, this option will remove the machine and it will no longer be protected by ASR. Protection configuration and settings will be automatically cleaned up. Leaving the on premise Primary VM in a clean replication state.

azureerror4

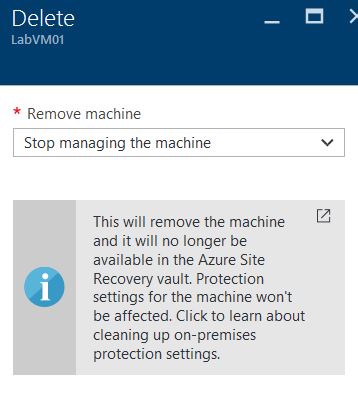

2) Stop Managing the Machine. Also, as shown, this option removes the replica VM and it will no longer be available in ASR. The Protection settings for the Primary on premise VM will be unaffected, leaving the administrator with the clean up task as described with the script above. I had used this option to remove the replica VM above. This left the on premise VM in the state that required a manual clean up.

azureerror5
